What is the starting current of a 400w submersible pump?

Hey there! As a supplier of 400w submersible pumps, I often get asked about the starting current of these pumps. It's a crucial topic, especially for those who are looking to use these pumps efficiently and safely. So, let's dive right into it.

Understanding Starting Current

First off, what exactly is starting current? Well, when you turn on an electrical device like a 400w submersible pump, it needs a burst of extra power to get going. This initial surge of current is what we call the starting current. It's usually much higher than the normal operating current of the device.

For a 400w submersible pump, the starting current is important for a few reasons. If your electrical system can't handle this initial surge, it might trip the circuit breaker or cause other electrical issues. Also, understanding the starting current helps in choosing the right wiring and protection devices for your pump.

Factors Affecting the Starting Current of a 400w Submersible Pump

There are several factors that can influence the starting current of a 400w submersible pump:

Motor Type

The type of motor used in the pump plays a big role. Most 400w submersible pumps use induction motors. These motors typically have a higher starting current compared to some other types. For example, a single - phase induction motor in a 400w submersible pump might have a starting current that is 5 to 7 times the normal operating current.

Load at Startup

The load on the pump when it starts also affects the starting current. If the pump has to lift water from a great depth or if there is a lot of resistance in the pipes, it will need more power to get started. This means a higher starting current. For instance, if you're using the pump to drain a deep well, the starting current could be significantly higher than if you're just using it to move water in a shallow pool.

Power Supply Conditions

The quality of the power supply can impact the starting current. A low - voltage power supply can cause the motor to draw more current to try and start. On the other hand, a stable and proper voltage supply can help keep the starting current within a reasonable range.

Calculating the Starting Current

Calculating the exact starting current of a 400w submersible pump can be a bit tricky. But we can use some general rules of thumb.

Let's assume the pump has a power rating of 400w. If it's a single - phase pump operating at a standard voltage of 220V, we can first calculate the normal operating current using the formula (I = \frac{P}{V}), where (P) is power and (V) is voltage. So, the normal operating current (I_{normal}=\frac{400}{220}\approx1.82A).

As mentioned earlier, for a single - phase induction motor, the starting current can be 5 to 7 times the normal operating current. So, the starting current (I_{starting}) could be anywhere from (5\times1.82 = 9.1A) to (7\times1.82 = 12.74A).

However, this is a very rough estimate. The actual starting current can vary depending on the factors we discussed earlier.

Our 400w Submersible Pump Range

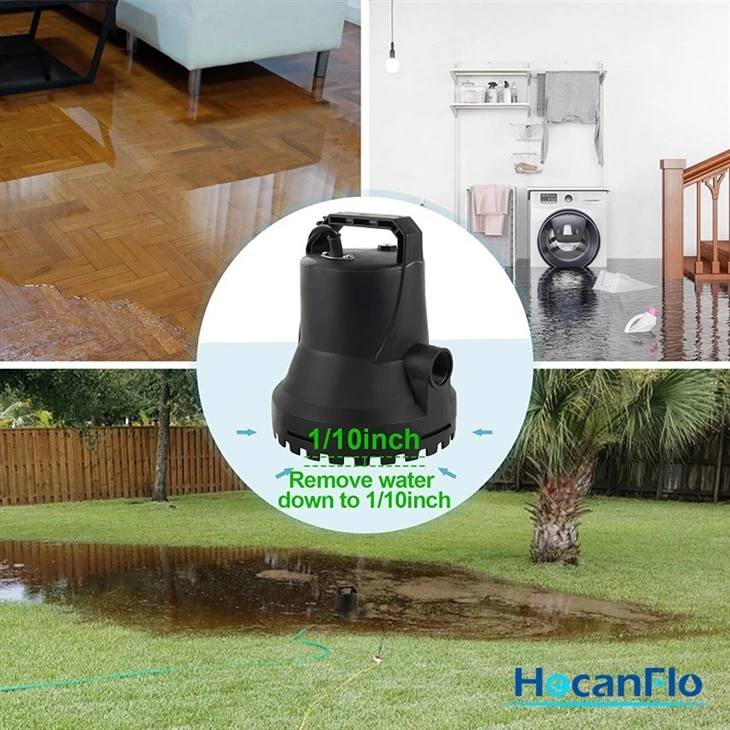

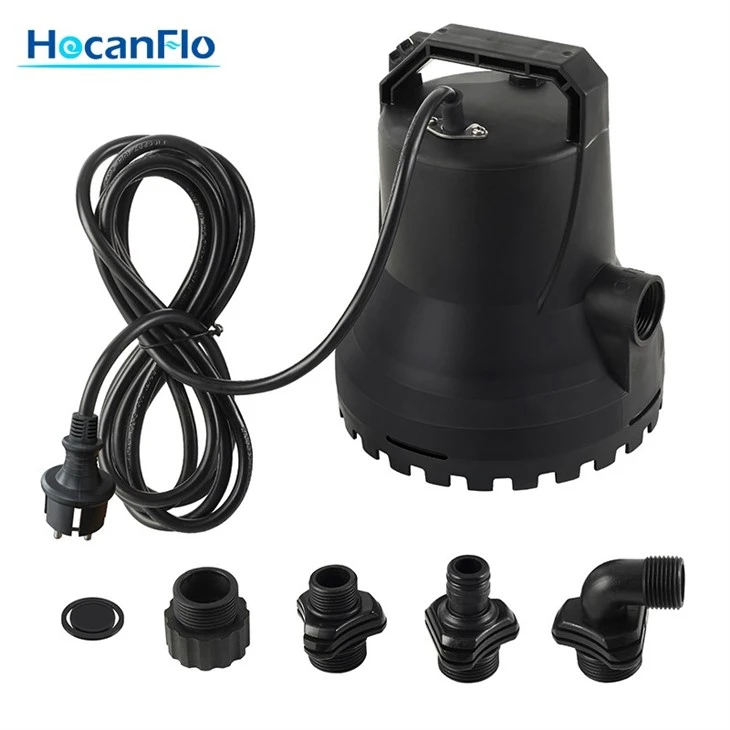

We offer a wide range of 400w submersible pumps that are designed to meet different needs. Whether you need a pump for your Swimming Pool Submersible Pump, for general utility purposes with an Automatic Submersible Utility Pump, or for a sump with an Electric Portable Submersible Sump Pump, we've got you covered.

Our pumps are built with high - quality materials and advanced technology. They are designed to have a relatively stable starting current and efficient operation. We've done a lot of testing and optimization to make sure that our pumps can start smoothly without causing too much stress on your electrical system.

Importance of Managing Starting Current

Managing the starting current of your 400w submersible pump is essential for several reasons.

Electrical System Protection

As I mentioned before, a high starting current can trip the circuit breaker or cause damage to other electrical components. By understanding and managing the starting current, you can ensure that your electrical system remains safe and reliable.

Pump Lifespan

Excessive starting current can also put a lot of strain on the pump motor. Over time, this can lead to premature wear and tear, reducing the lifespan of the pump. By keeping the starting current in check, you can extend the life of your pump and save money on replacements.

Tips for Reducing Starting Current

If you're concerned about the starting current of your 400w submersible pump, here are some tips:

Soft Starters

Using a soft starter can significantly reduce the starting current. A soft starter gradually increases the voltage to the motor, which in turn reduces the initial surge of current. This can be a great investment, especially if you're using a pump in a situation where the starting current could cause problems.

Proper Installation

Make sure the pump is installed correctly. Ensure that the pipes are properly sized and there are no blockages. A well - installed pump will have less resistance at startup, which can help reduce the starting current.

Conclusion

Understanding the starting current of a 400w submersible pump is crucial for both the proper operation of the pump and the safety of your electrical system. By considering the factors that affect starting current, calculating it roughly, and taking steps to manage it, you can ensure that your pump works efficiently and lasts a long time.

If you're in the market for a 400w submersible pump or have any questions about starting current or our products, don't hesitate to reach out. We're here to help you find the right pump for your needs and provide you with all the information you need for a successful installation and operation.

References

• Electrical Engineering Books on Motor Theory
• Manufacturer's Specifications for Submersible Pumps
